제품 상세 정보:
결제 및 배송 조건:
|
| 타입: | 압전 세라믹스 | 재료: | P44 |
|---|---|---|---|
| 주파수: | 155KHZ | 공항: | 센즈헨 |
| 이름: | PZT는 지하철을 탑니다 | 제품: | 압전 관 |
| 하이 라이트: | 높은 높이 압전기 Tube,P44 압전 Tube,155KHZ PZT 튜브 |
||

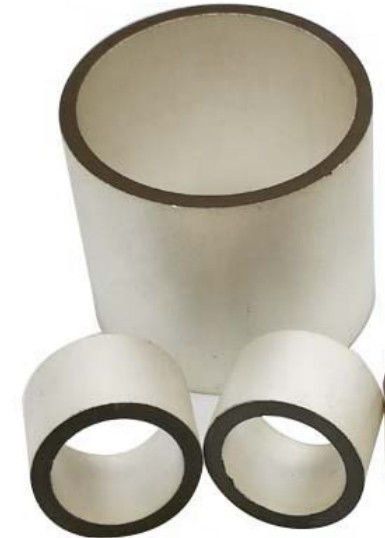

Piezoelectric Tube Ø36Ø31x20 PZT Ceramics Cylinder element for Hydrophone
1. Product description
Piezoelectricity is a type of electricity that occurs when materials possessing piezoelectric properties are exposed to pressure or stress. Examples of these materials are ceramics, also called piezoceramics , and crystals.
Piezoelectric Ceramics (piezoceramics), such as Piezoelectric Ceramic Ring, Piezoelectric Ceramic Disc, Piezoelectric Ceramic Tube, Piezoelectric Ceramic Ball/Hemisphere, Piezoelectric Ceramic Cylinder and Piezoelectric Ceramic Square/Rectangular.
2. Brief description of piezo ceramic element & Attributive Characters
1. Electrode form/ Modulating: External drive (diode); Self drive (transistor);
2. Thickness: Thick (T>0.5mm); Standard (0.5mm>T>0.2mm);
3. Dimension: Smallest diameter is 5mm, Biggest is 100mm;
4. Metal plate type: Silver
5. Connection terminal: Solder wire or not.
3. Applications for ceramics
Piezo Ceramic Element: Applications (Piezoceramics element; Piezo diaphragm, piezo plate)
1. For sound making:Clocks,Calculators,Telephones,Washing machines,Various(Burglar alarms,etc);
2. For transduction: Embryo monitor,Heart reflectoscope reflector,pedometer, car alarm sensor.
3. For face lift beauty devices.
4. For medical devices.
5. For distance measuring.
6. Hydrophone
7. Oceanography
Applications:
Hydrophone
We can offer high quality and high performance to customer.
As also can according to customer requested to customise different dimension and configuration if interested in our product please don't hesitate to contact us
Q: Delivery Time
A: Based on the order quantity
Q: Payment
A: T/T,W esternUnion
Q: Quantity guarantee
A: All products will have been strictly Quality insepected before packing.
Q: Shipping
A: We have strong cooperation with DHL,TNT,UPS,FEDEX,and shipping agent for air and sea.
give the economic freight according to goods weight.
Q: Wealth of experience
A: Professional sercive.choose us,you will do the trade more easily.
Q: Good Service
A: Excellent team to offer the efficient and professional reply.
Q: Technical Problem
A: Provide Professional Technical Support.
Specifications:
| Dimension: |
Ø36Ø31x20mm |
| Piezoelectric material : |
P-44 Navy Type II |
| Resonant Frequency : | 31KHz ± 5% |
| Coupling Factor (KP) : | >25% |
| Capacitance (Cp): | 9900 PF ± 20% |
| Dielectric loss (tgδ): | < 0.5% |
| Resonant Resistance (R) : | < 40 ohm |
